PC390LC

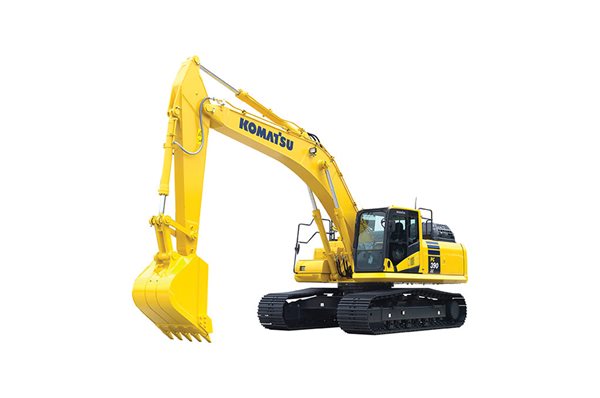

The Komatsu PC390LC-11 excavator has a large undercarriage design that significantly increases overside lift capacity and provides exceptional stability in applications that require long arms or heavy attachments. The PC390LC-11 also has Power Mode with enhanced engine and hydraulic pump control logic provides greater hydraulic power and speed for faster cycle times, improved multifunction performance and up to 12% greater productivity than the previous model.
Emission Rating
Tier 4 Final
Net Horsepower
257 HP @1,950 rpm (192 kW @1,950 rpm)
Max Operating Weight
89940 lb (40796 kg)
Max Bucket Capacity
2.91 yd3 (2.22 m3)
Max Digging Depth
26′7″ (8100 mm)
